12 ports Industriel 10/100/1000Mbit + 4 x 100/1000Mbit SFP slot switch, DIN-beslag, -10 - +70°C, 12 - 48VDC
6,159.00 NOK
Ekskl. moms
12 x 10/100/1000Mbps + 4 x 100/1000Mbps SFP porte
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address tabel
Jumbo Frame Support: 12.2K
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
1 Relay Output til Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Temperaturområde: -10° to 70° C
Antall
close
close
Specifications
| Dimensioner | 59 x 99 x 142mm |
|---|---|
| Driftstemperatur | -10 - +70 |
| Fiber | 4 x 100/1000Mbps SFP slot |
| Forsyning | 12 - 48VDC, redundant |
| Kabinet | Metal, IP30, DIN-beslag, |
| Maks. effekt | 16 Watt |
| Netværk | 12 x RJ45, 10/100/1000Mbps |

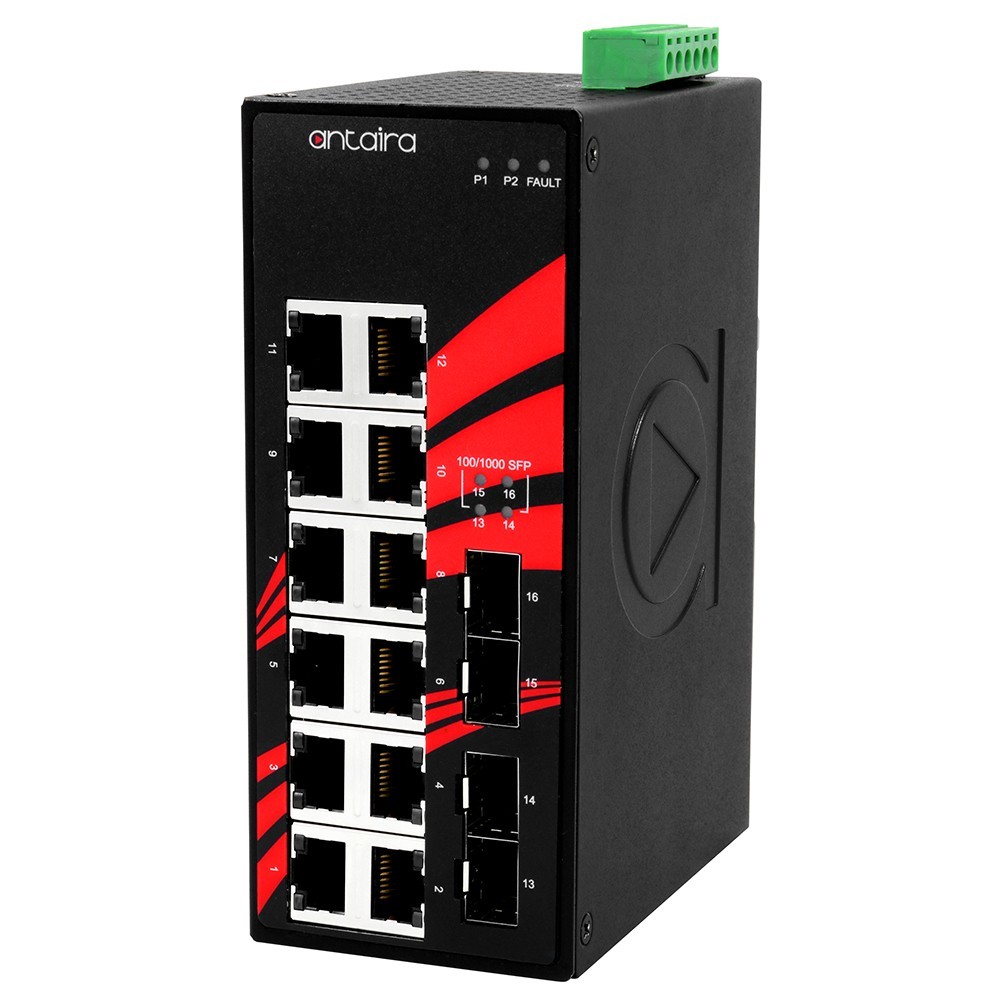

Antaira Technologies’ LNX-1604G-SFP industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit is designed with twelve gigabit Ethernet ports and four dual rate (100/1000Mbps) SFP slots for fiber connections, making it ideal for applications that demand high bandwidth and long distance communication; such as, power/utility, water wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.
This product series has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. It also has a dual power input support of 12~48VDC. Operating temperature -10 to 70°C.
