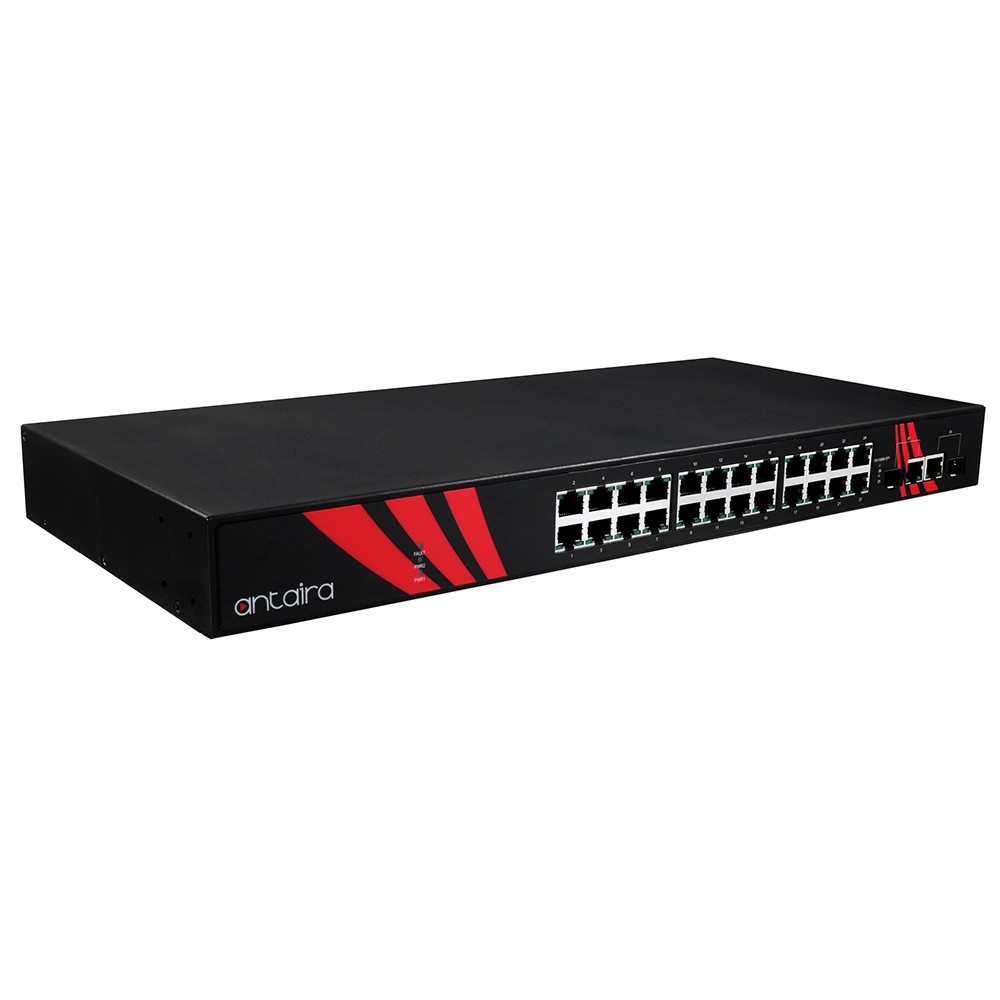

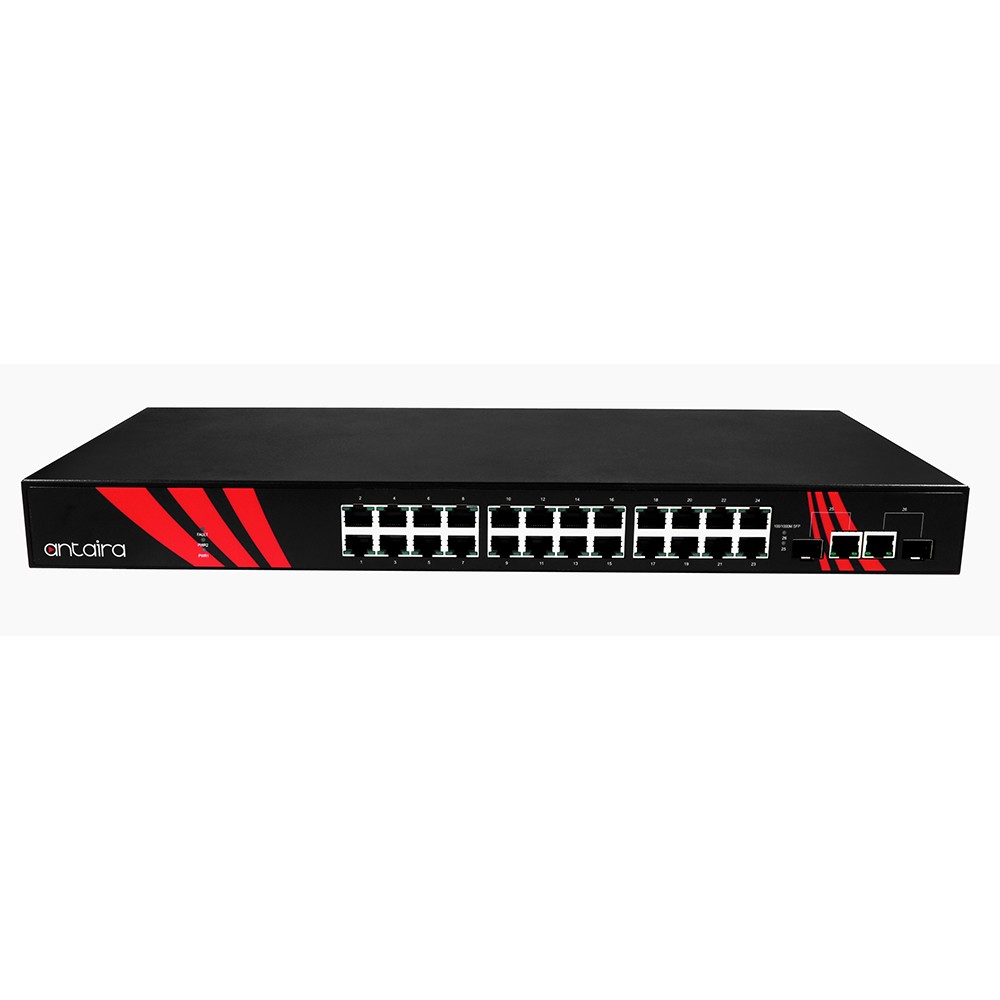

26-Port Industrial 1U 19 "Rackmontert PoE + Gigabit Ustyrt bryter, Utvidet temperatur 40 ° til 75 ° C
15,959.00 NOK
Ekskl. moms
24 x 10/100 / 1000Tx RJ45 (30W / port) IEEE 802.3at PoE + 2 x Gigabit-kombinasjon (2 x RJ45, 2 x FTP)
Auto MDI / MDI-X Funksjon
butikk -and-Forward Switching Architecture - 8K MAC-adressetabell
9.6Kbytes Jumbo-ramme
Overspenningsvern: 2000 VDC
ESD-beskyttelse: 6000 VDC
Strømforsyning: 48 ~ 55VDC
Innebygd reléutgang for strømbrudd
1U 19 "Rackmonteringsdesign
Driftstemperatur STD: 40 ° til 75 ° C
Antall
På vei inn
close
close
Specifications
| Approval | EMI: FCC Part 15 Subpart B Class A, CE EN 55022 Class A, EMS: IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) |
|---|---|
| Buffer | 4Mbits |
| Chok/Vibration | IEC60068-2-32, IEC60068-2-27 |
| Dimensioner | 440 x 44 x 200mm |
| Driftstemperatur | EOT: -40° to 75° C |
| Ethernet | 24*10/100/1000Tx RJ45 (w/24*PSE: 30W/Port) |
| Fiber | Combo porte: 2*RJ45 Ports w/10/100/1000Tx Ethernet and 2*100/1000 SFP Slot |
| Luftfugtighed | 5% to 95%, (non-condensing) |
| Montering | 1U 19” Rackmount |
| Netværk | 10BaseTx: UTP/STP Cat. 3,5 100BaseTx: UTP/STP Cat. 5 1000BaseTx: UTP/STP Cat.5/5e/6 |
| PoE | 30 Watts max. per PoE port |
| Protokol | CSMA/CD |
| Relæ | 24 VDC, 1A resistive |
| Standarder | IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3af/at Power over Ethernet |
| Strømforbrug | 24 Watts for System |
| Strømforsyning | 48-55VDC |
