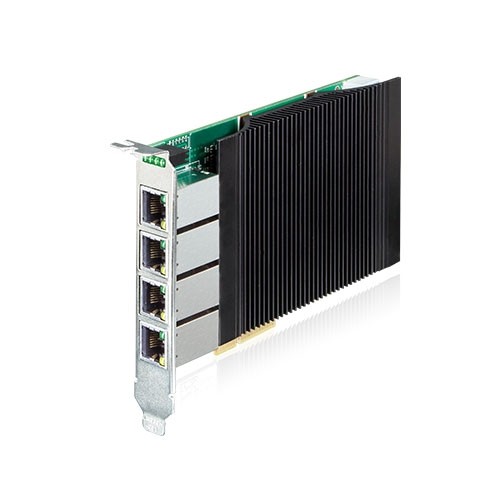

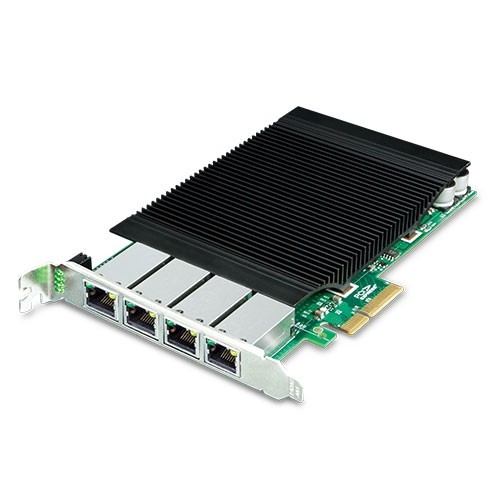

4 porter Ethernet PCI Express Server Adapter PoE +
Ring 67 104 460 for pris
Ekskl. moms
4-Port 10/100 / 1000T 802.3at PCI Express
PoE + (120 W)
Intel I350 Controller til 4 x RJ45
Dimensjoner: 169 x 121 x 18 mm | Vekt 251 g
Driftstemperatur temperatur~~POS=HEADCOMP: -10 ~ 60 C
Antall
På vei inn
close
close
Specifications
| Controller | Intel I350 |
|---|---|
| Dimensioner | 169 x 121 x 18 mm |
| Driftstemperatur | -10 ~ 60 degrees C |
| Forsyning | PCIe power supply 3.3V ±9% / 12V ±8% |
| Interface | 4 x RJ45 |
| LED | 1000Mbps: LINK: Yellow, ACT: Green 10Mbps/100Mbps: ACT: Green |
| OS SUPPORT | Windows Server 2008R2 64bits Windows Server 2012 64bits Windows Server 2016 64bits Windows 7 32/64bits Windows 8 32/64bits Windows 10 32/64bits Linux 2.6.x, Linux 4.x VMware® 6.0 |
| PCI | PCI Express v2.1 (5.0GT/s) x4 |
| Pin | 1/2 (+), 3/6 (-) |
| PoE | 30 Watt Per port 60W maximum with DC 12V over PCIe slot 120W* maximum with DC 12V over PCIe slot and 4 molex plug from power supply IEEE 802.3at Power over Ethernet Plus/PSE |
| Standarder | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.1Q VLANs IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Vekt | 251g |
